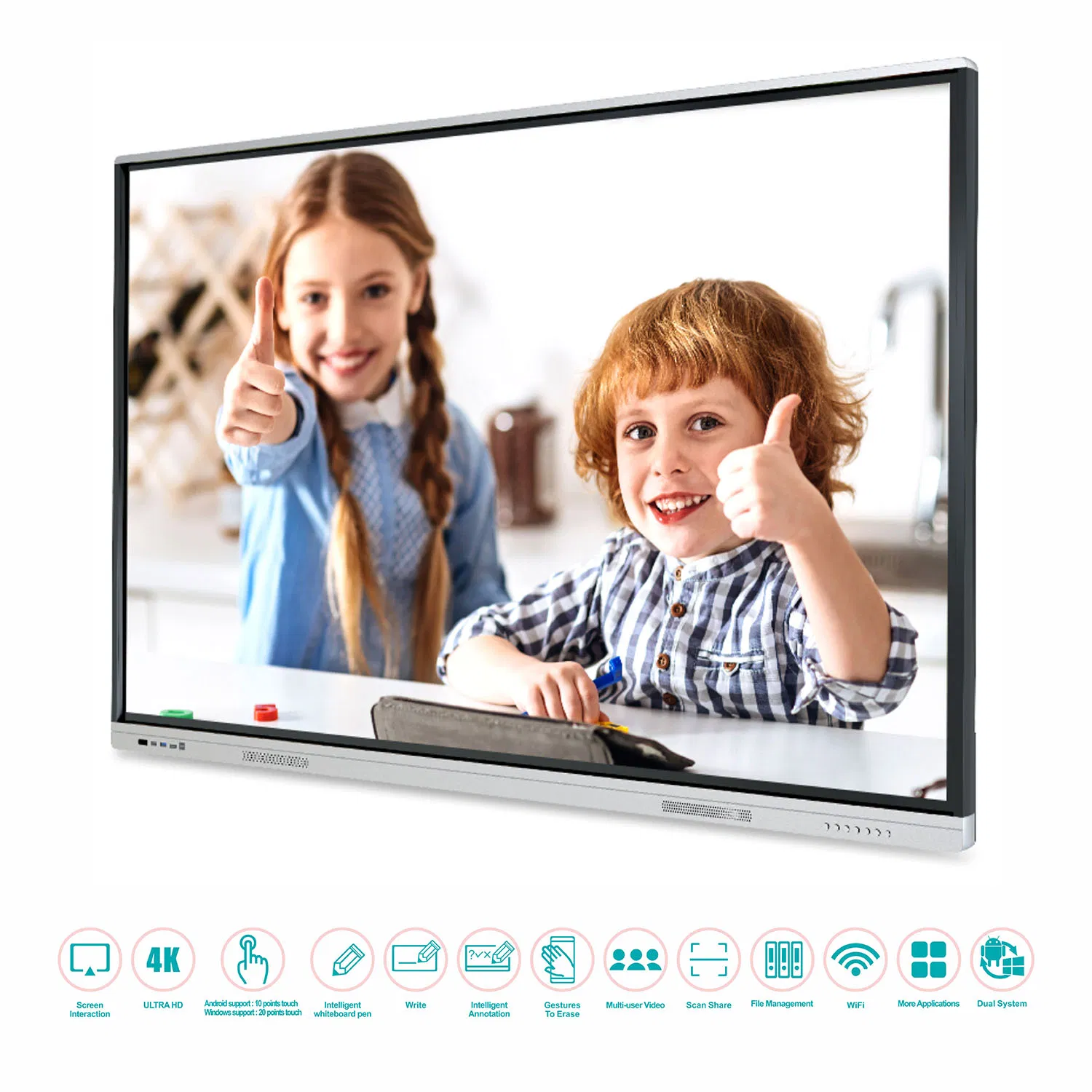

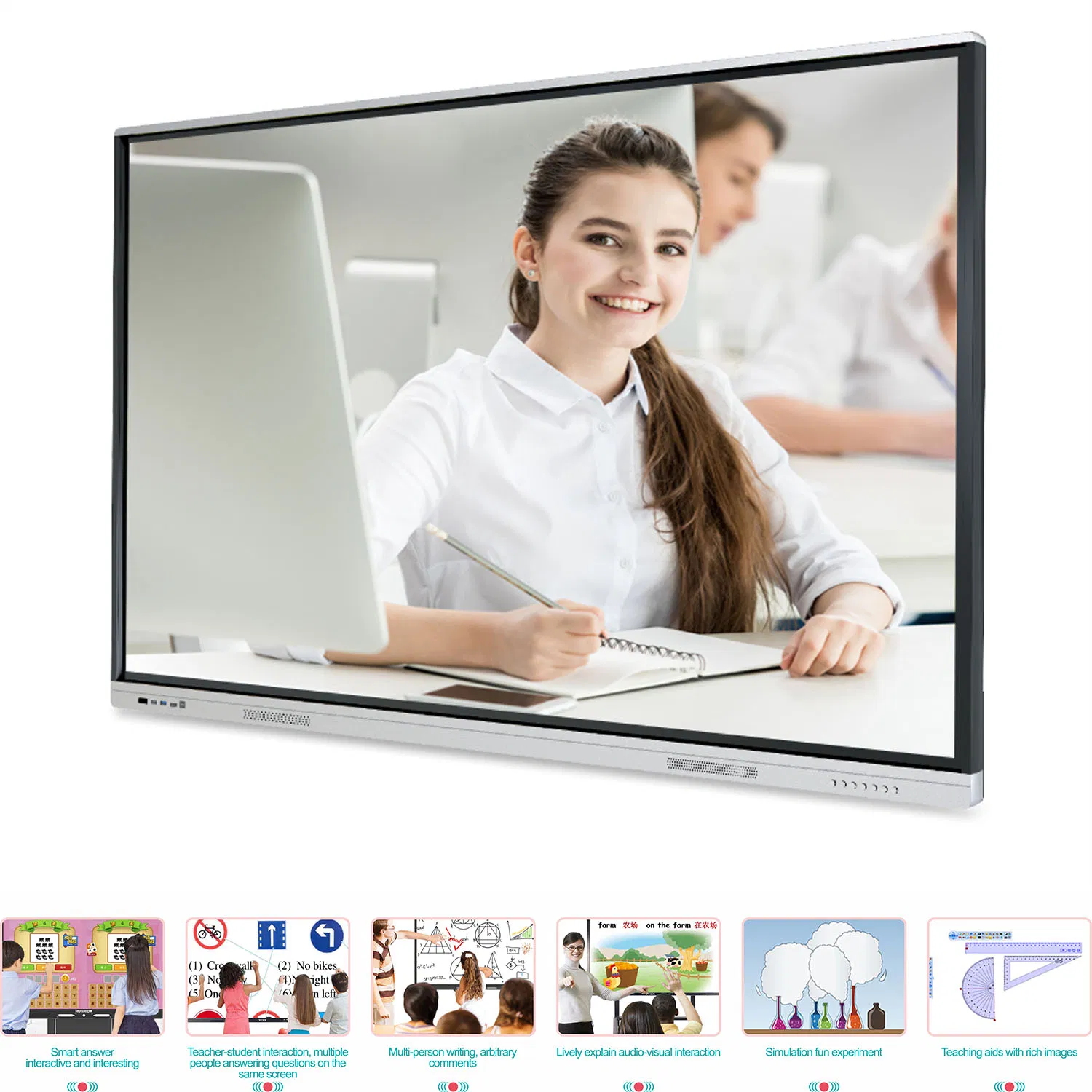

86 Inch IR Touch Whiteboard Nesting for Education&Conference
Company Profile:Founded in 2015, the group includes Guangdong DiDa Display Flexidis Technology Co.,Ltd. which focuses on technology development and product sales of min LED andMicro LED products, and Dr. Takaku, the core technical team, has been engaged in LED research for more than 20 years. The de......
Send Inquiry
Product Description
Company Profile:
Founded in 2015, the group includes Guangdong DiDa Display Flexidis Technology Co.,Ltd. which focuses on technology development and product sales of min LED andMicro LED products, and Dr. Takaku, the core technical team, has been engaged in LED research for more than 20 years. The developed LED products have many advantages, such as high brightness, super-large arbitrary shape, light weight, high pixel, high energy saving, and free bending, which are widely used in commercial outdoor advertising and media, which are different from the existing LED technology in the industry. Business conferences and large-scale education and security control The center and all kinds ofscenes.

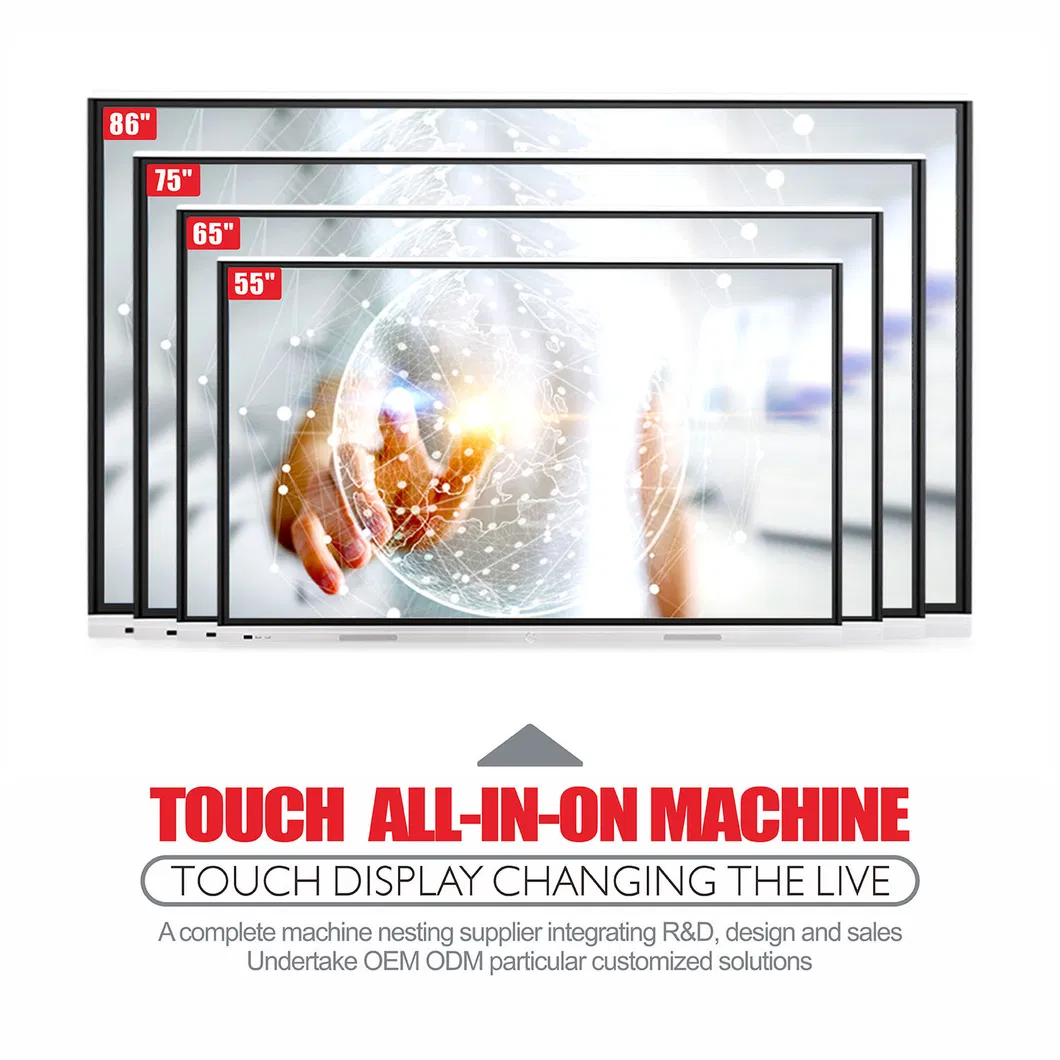

The nesting of the sizes we can provide
are:55,65,70,75,85,86,98.They are all made by professional moulds.
Since it was founded, the industry's most comprehensive product resources, excellent product quality, professional service attitude based on the global commercial display market. By the end of 2018 statistics, Dida delivery market share ranked among the country's top 4. Shenzhen DiDa Display Technology Co., Ltd. has a clear position, mainly focusing on the education and conference industry products
and materials development and sales, its structural materials create a disruptive industry switching and application.
Founded in 2015, the group includes Guangdong DiDa Display Flexidis Technology Co.,Ltd. which focuses on technology development and product sales of min LED andMicro LED products, and Dr. Takaku, the core technical team, has been engaged in LED research for more than 20 years. The developed LED products have many advantages, such as high brightness, super-large arbitrary shape, light weight, high pixel, high energy saving, and free bending, which are widely used in commercial outdoor advertising and media, which are different from the existing LED technology in the industry. Business conferences and large-scale education and security control The center and all kinds ofscenes.
The nesting of the sizes we can provide
are:55,65,70,75,85,86,98.They are all made by professional moulds.
Since it was founded, the industry's most comprehensive product resources, excellent product quality, professional service attitude based on the global commercial display market. By the end of 2018 statistics, Dida delivery market share ranked among the country's top 4. Shenzhen DiDa Display Technology Co., Ltd. has a clear position, mainly focusing on the education and conference industry products
and materials development and sales, its structural materials create a disruptive industry switching and application.
| Model | DH-T6H86B | |
| Name | 86 inch smart education tablet | |
| Display parameters | display size | 1895.04(H)×1065.96V) (mm) |
| image scale | 16:9 | |
| brightness | 350cd/m | |
| contrast ratio | 1200:1 | |
| color | 10bit TrueColor(16.7M) | |
| backlighting type | DLED | |
| Max.viewing angle | 178° | |
| Resolution | 3840 * 2160 | |
| Machine Parameters | Vedio standard | PAL/NTSC/SECAM |
| audio system | DK/BG/I | |
| power of audio system | 2X10W | |
| overall power consumption | ≤500W | |
| stand-by power consumption | ≤0.5W | |
| life times | 30000 hours | |
| working voltage | 100-240V, 50/60Hz | |
| whole machine size | 1953.3 (length) x 1151.42 (height) x 93.0 (thickness) mm | |
| 1953.3 (length) x 1151.42 (height) x 126.6 (thickness) mm (including rack) | ||
| packing size | 2101 (length) x 1338 (height) x 220 (thickness) mm | |
| N.W | 67KG | |
| G.W | 82KG | |
| working environment | Working temperature: 0ºC~50ºC; Working humidity: 10%RH ~ 80%RH; | |
| storage environment | Storage temperature: -20ºC~60ºC; Storage humidity: 10%RH ~ 90%RH; | |
| input port | Front port:HDMI*1, TOUCH*1, USB2.0*1, USB3.0*1 | |
| Rear port:HDMI*2,USB*2,TOUCH-USB*1,RS232*1,RJ45*1, VGA*1,AUDIO*1 | ||
| output port | LineOut*1,COAX*1,(HDMIout optional) | |
| Front button | SOURCE,MENU,VOL+,VOL-,HOME,POWER,ECO | |
| WIFI | 2.4 | |
| Bluetooth | None | |
| Andriod system Parameters | CPU | MSD6A648(Cortex A53*4 /1.5G) |
| GPU | T720MP2 | |
| RAM | 2G | |
| FLASH | 8/16/32G(optional) | |
| Android version | Andriod6.0 | |
| OSD language | Chinese English | |

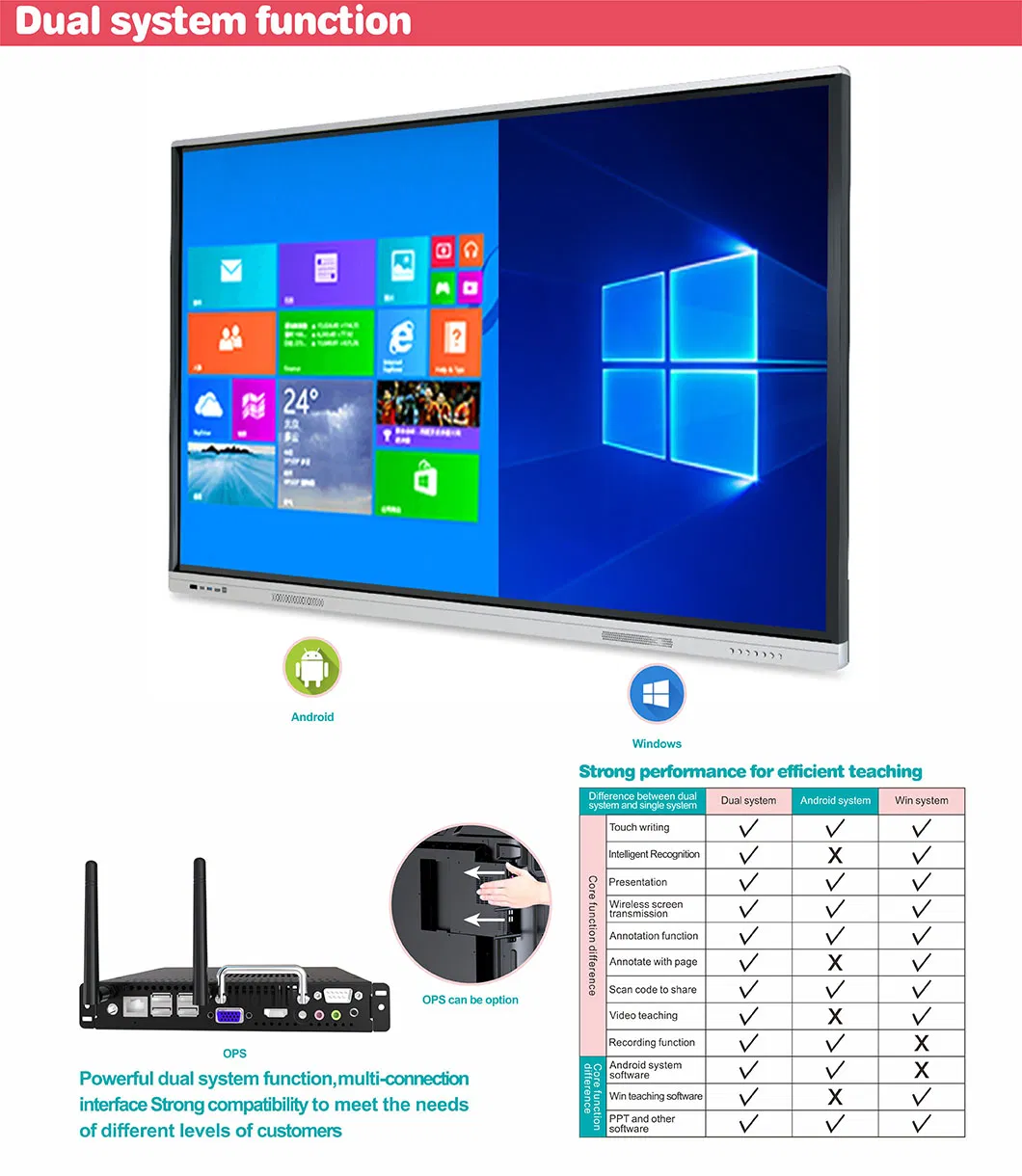

| OPS Parameters | CPU | I3/I5/I7(optional) |
| memory | 4G DDR3 | |
| Hard disk | 128G SSD/256G SSD(optional) | |
| Opareting system | window7 /window10(optional) | |
| interface | HDMI*1,USB2.0*4,USB3.0*2,VGA*1,Earphone*1,MIC*1,RS232*1, RJ-45 network interface*1,Power botton,Recovery botton | |
| WIFI | Support 802.11 b/g/n | |

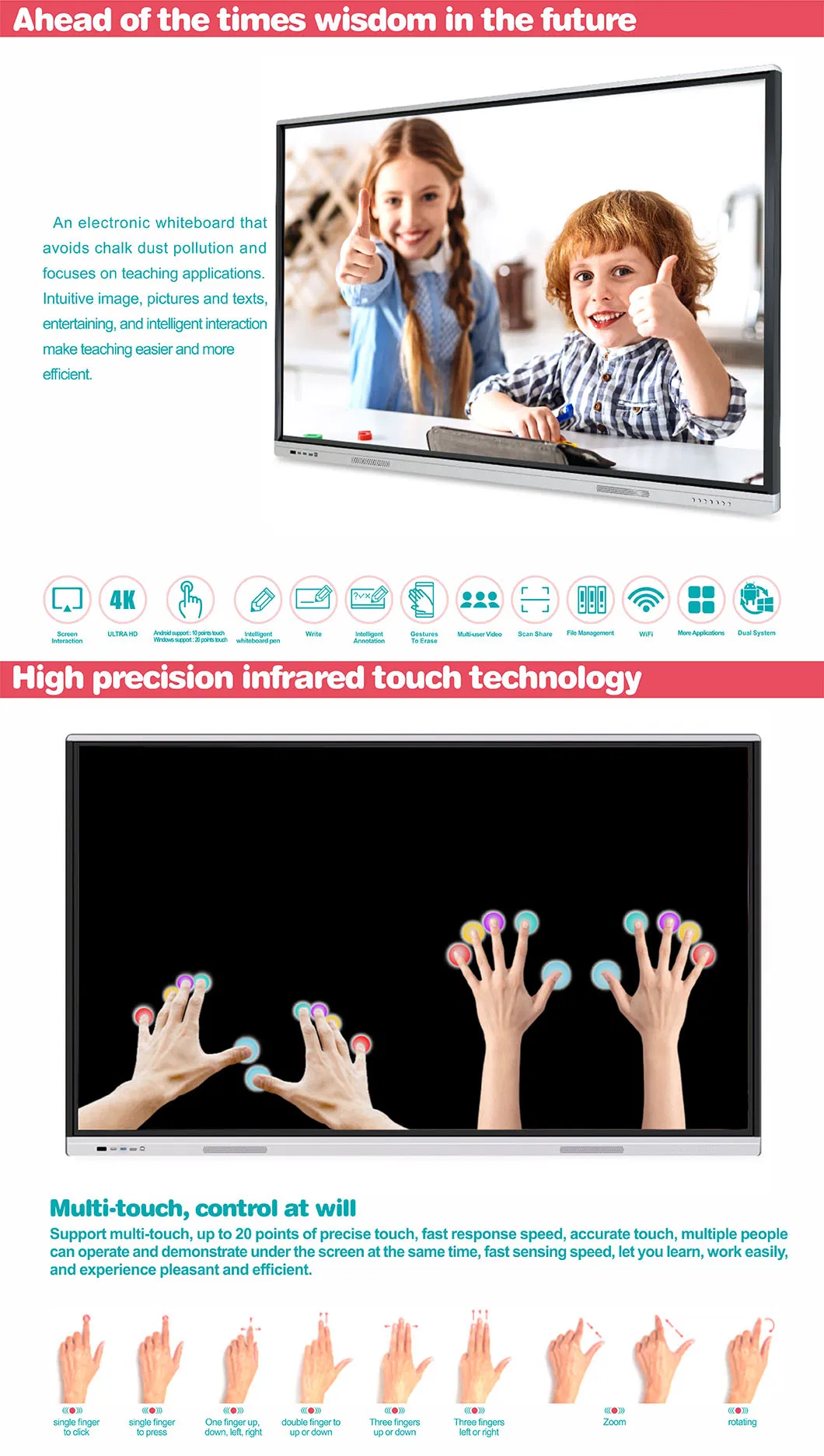

| Touch frame parametrs | Toucy type | Infrared touch |

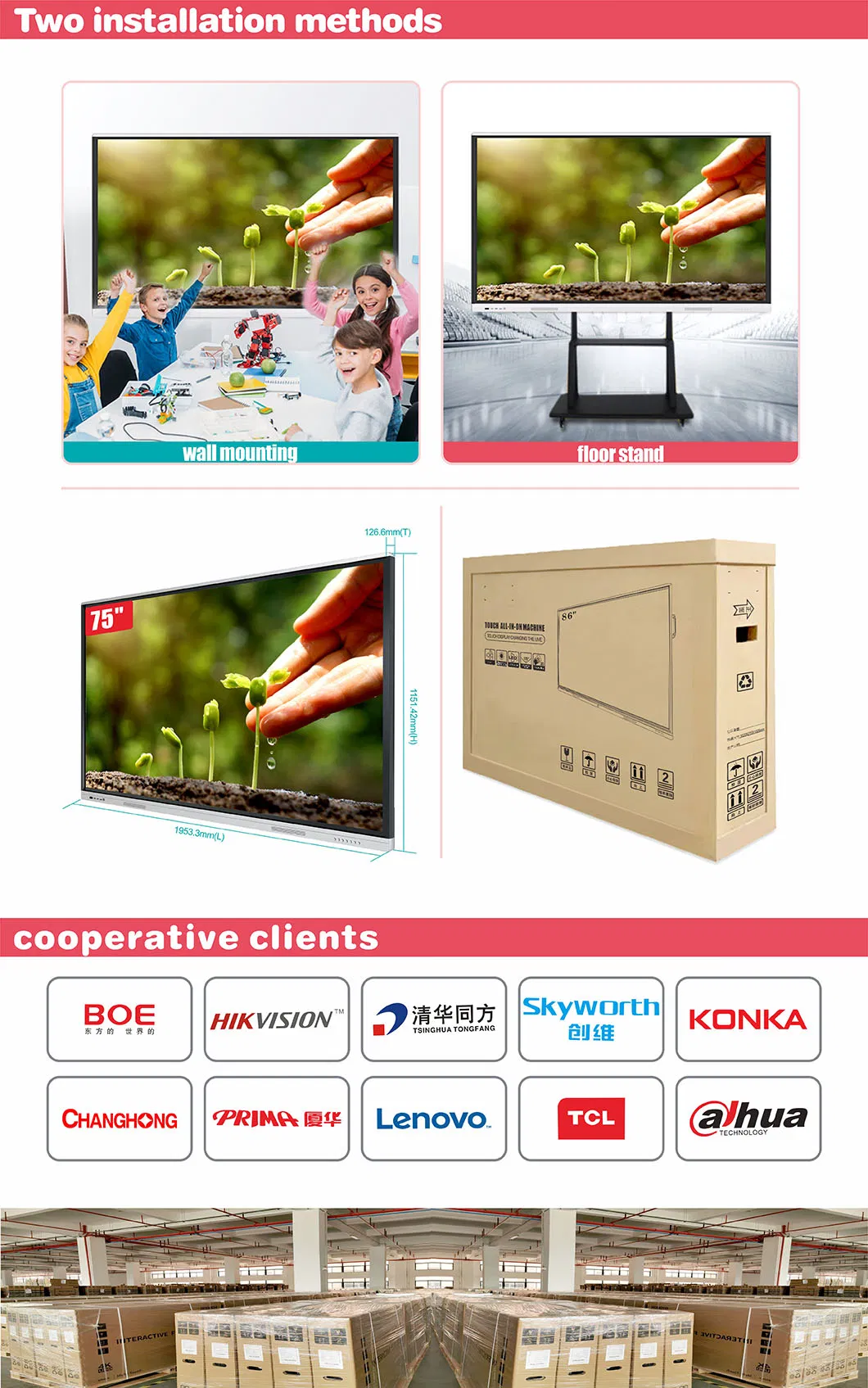

| Installation Method | Built-in front disassembly | |
| Touch screen sensing method | Fingers, writing pens, or other non-transparent objects ≥ Ø8mm | |
| Resolution | 32767*32767 | |
| Touch system communication port | USB 2.0 | |
| responding speed | ≤8 ms | |
| positioning accuracy | ≤±2mm | |
| Light resistance | 88K LUX | |
| multi-touch technology | 20-points touch | |
| Number of touches | More than 60 million times in the same location | |
| Touch support operating system | WIN7,WIN8,WIN10,LINUX,Android,MAC | |
| Accessories | remote control | 1 pcs |
| Power Cable | Standard 1.8 meters 1 | |
| Touch Pen | 1 pcs | |
| Warranty card | 1 pcs | |
| certificate of inspection | 1 pcs | |
| wall mounted bracker | 1 set | |

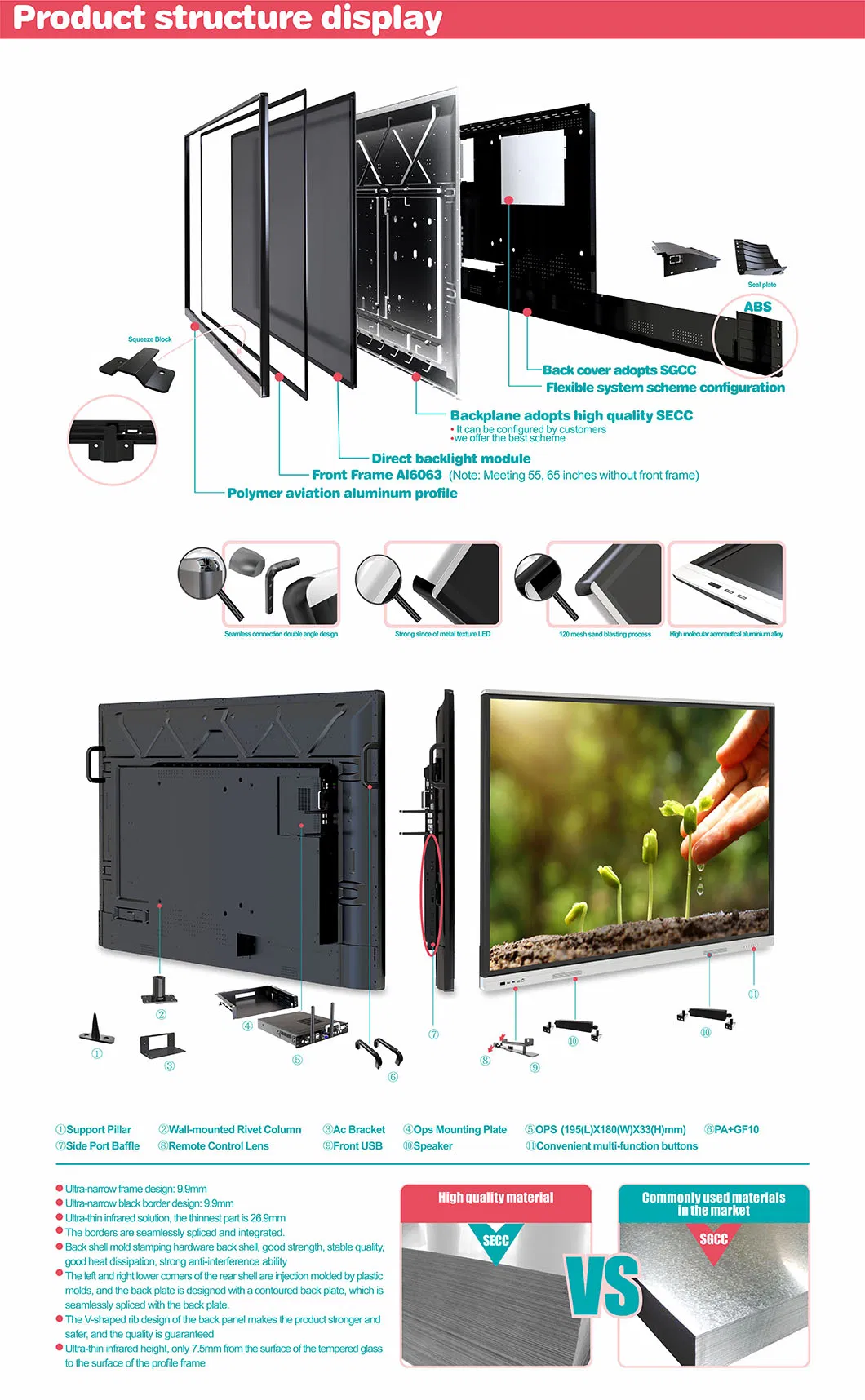

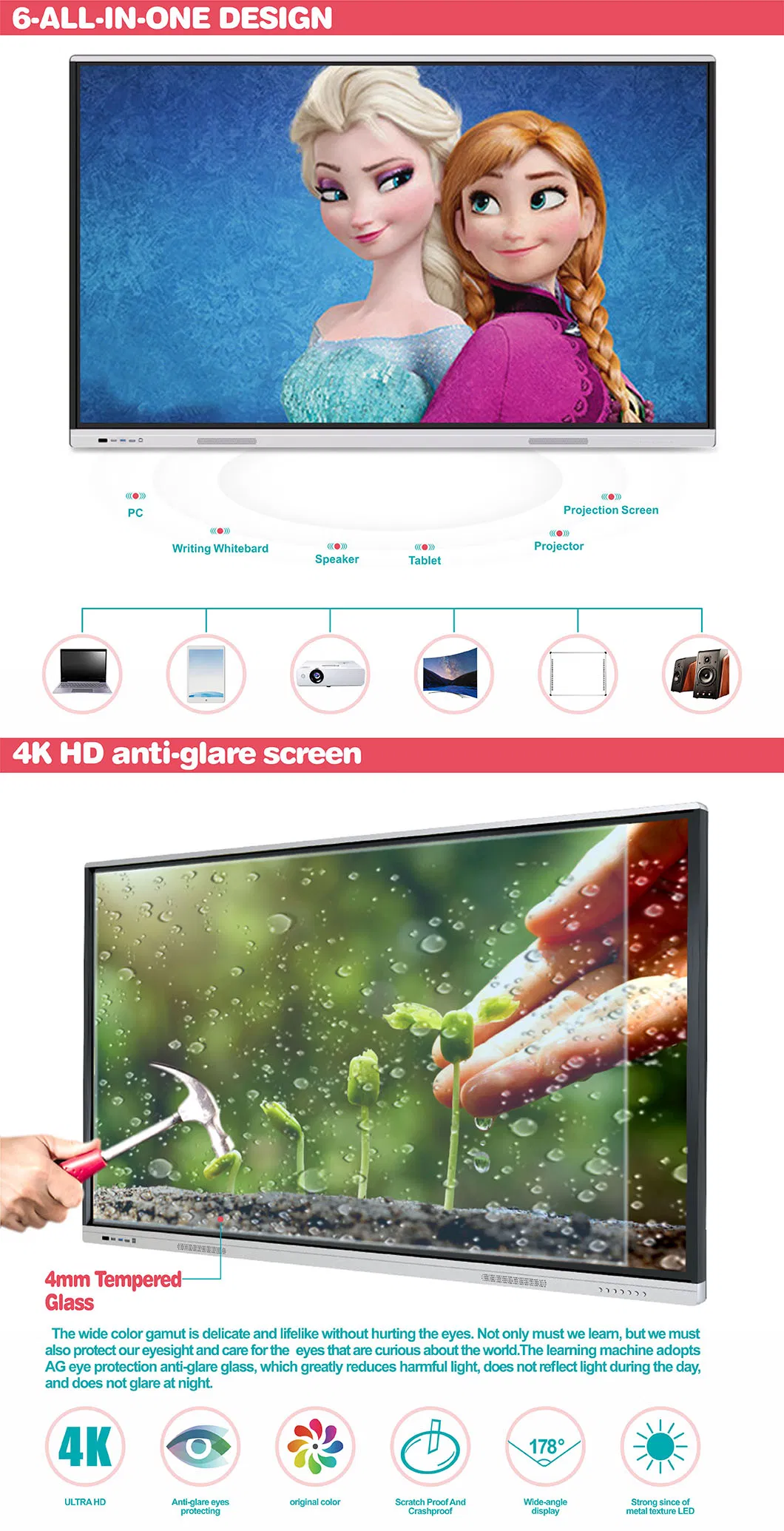

| Characteristic function | 1. Common interface front, speaker front, with digital audio output, support full-channel touch, touch channel automatic switching, gesture recognition, intelligent control, remote control integrated computer shortcut keys,intelligent eye protection, one-key switch; 2. Detachable infrared frame structure design; 3. Optional high-precision 20-point real touch with an accuracy of 1mm. | |
FAQ
1.Q:Can you introduce your company?

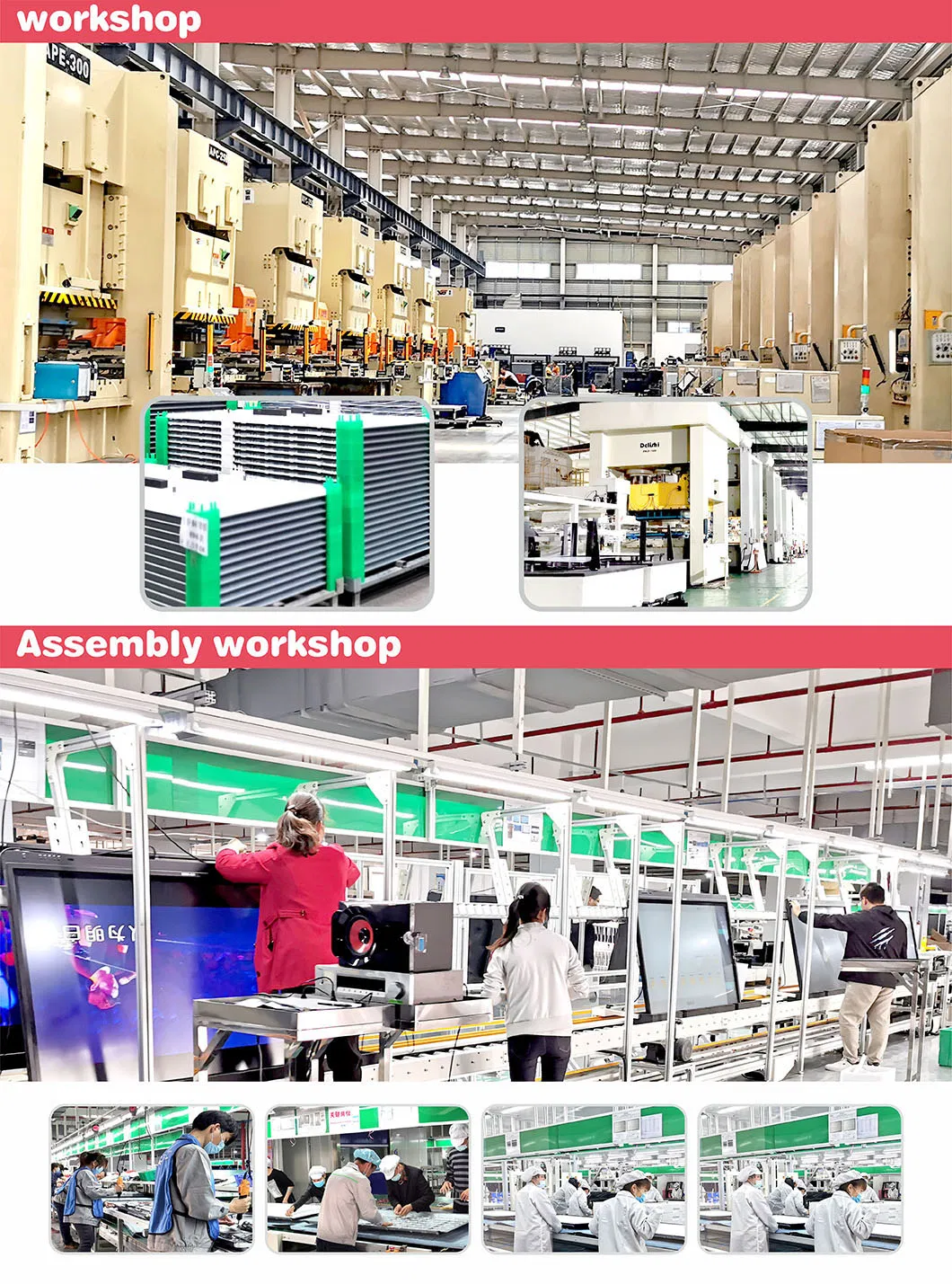

A:Dida is a large-scale display product integration solution provider that integrates mold design, manufacturing, product stamping and injection molding, module back-lighting OEM. The team has rich experience in product design, manufacturing, selling in the display industry. The 100,000-class dust-free workshops. Professional design and production of large-size LCD structural parts, backlight modules, and educational and conference integrated machine.
2.Q:Why does your company only produce on-in-all machine sets?
A:1>. Because the cost of developing an all-in-one machine is very high, we want to help customers save development costs.
2>. We have a very strong R&D team and strong innovation ability. Have rich experience in OEM and ODM
3>. The purpose of our company is to achieve customer brand and help more middle-size companies to grow.
3. Q:what is your MOQ?
A:1 sets
4.Q:How about your delivery time?
A:It depends on your quantity. If the goods are in stock, usually delivered within 3-5 days. If it is customized, we need to confirm the delivery date according to the actual situation.
5.Q:What payment methods does your company accept?
A:we accept T/T Paypal LC etc.
6.Q:Where is your company located?
A:Our headquarters is in Changan town, Dongguan, China. It is 1 hour from Shenzhen and 1.5 hours from Guangzhou. Traffic is very convenient.
7.Q:How many people at your R&D department?
A:12 persons.
8.Q:Does your company has an engineer to guide us in assembling the finished product?
A:Yes, We have professional engineers to instruct you on how to assemble. Actually very simple, don't worry.
9.Q: How about transportation?
A: We can go by air or sea according to your requirements. All accessories will be placed in a sturdy cardboard box with plastic bags on the outside of the box. So, you don't have to worry about the box breaking.
