T6h86c 86 Inch Anti-Glare Toughened Glass Monitor Conference Whiteboard
Product DescriptionT6 Series Nesting 86 inch wireless interactive whiteboard for on line teaching and meetingAbout T6H86C:1.Ultra-narrow frame design: 9.9mm2.Ultra-narrow black border design: 9.9mm3.Ultra-thin infrared solution, the thinnest part is 26.9mm4.The borders are seamlessly spliced and int......
Send Inquiry
Product Description
T6 Series Nesting 86 inch wireless interactive whiteboard for on line teaching and meeting
1.Ultra-narrow frame design: 9.9mm
2.Ultra-narrow black border design: 9.9mm
3.Ultra-thin infrared solution, the thinnest part is 26.9mm
4.The borders are seamlessly spliced and integrated.
5.Back shell mold stamping hardware back shell, good Strength, Stable quality, good heat dissipation, strong anti-interference ability
6Plastic molds for the left and right lower corners of the rear shell are injection molded Contoured backplane design, seamlessly spliced with backplane
7.The V-shaped rib design of the back panel makes the product stronger and safer, and the quality is guaranteed
8.8 million cameras, 6 array microphones and 8 meters pickup
9.Ultra-thin infrared height, only 7.5mm from the surface of the tempered glass to the surface of the profile frame
- Six In One Design: computer, whiteboard, projector, TV, speaker, Tablet,multifunction in one equipment.
- Support 10 points IR touch ( 20 points touch option): Adopt super sensitive touch panel, increase the touch accuracy, and it can stand more than 35 million time secure touch without any uncontrolled space. Touch easily and control perfectly.

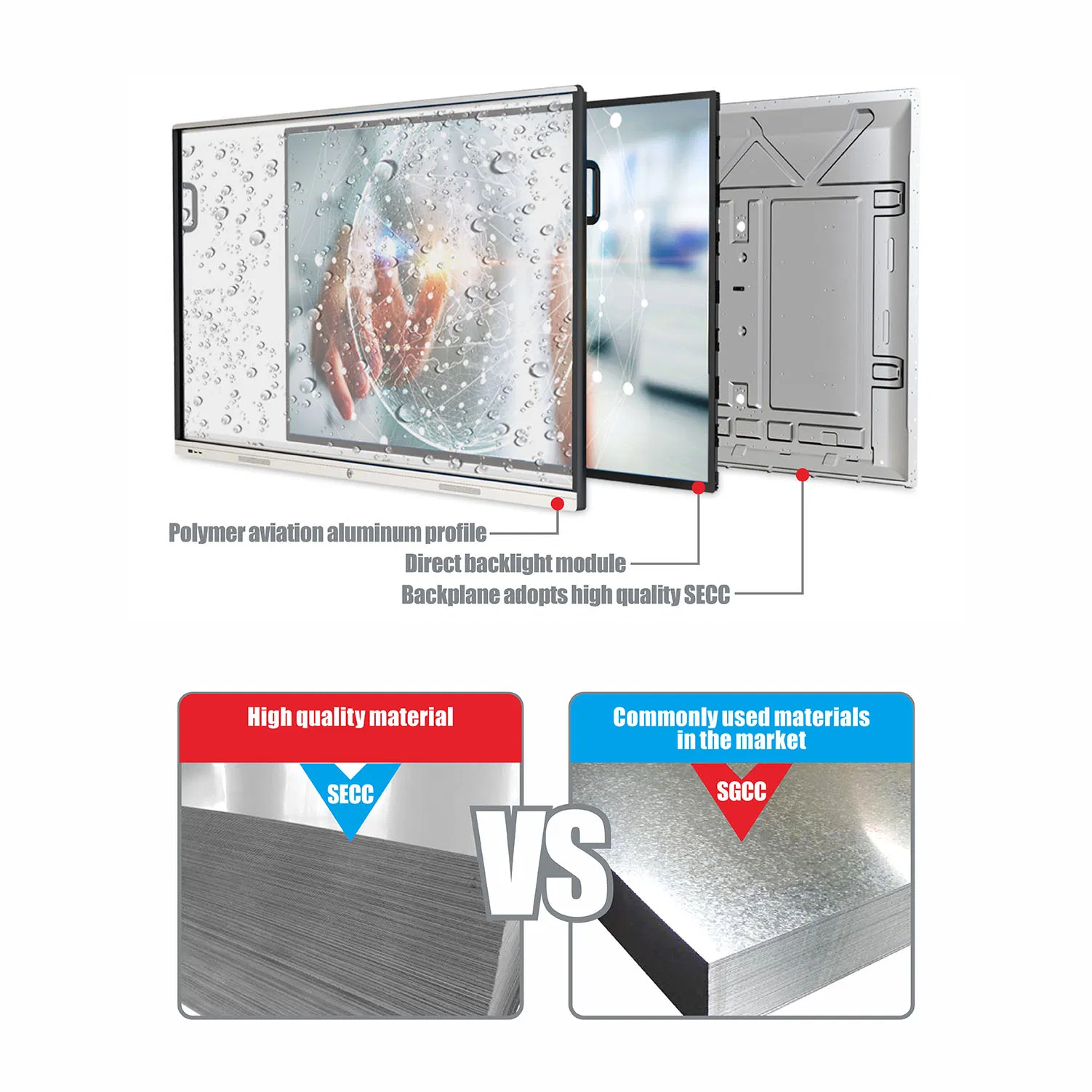

- Full-size standard mold back plate: Compared with traditional sheet metal CNC laser products, the product has better consistency and high strength. The back plate is strong enough to support the front profile frame and tempered glass, and the quality is stable, and it is fully mechanized. Production, high output.

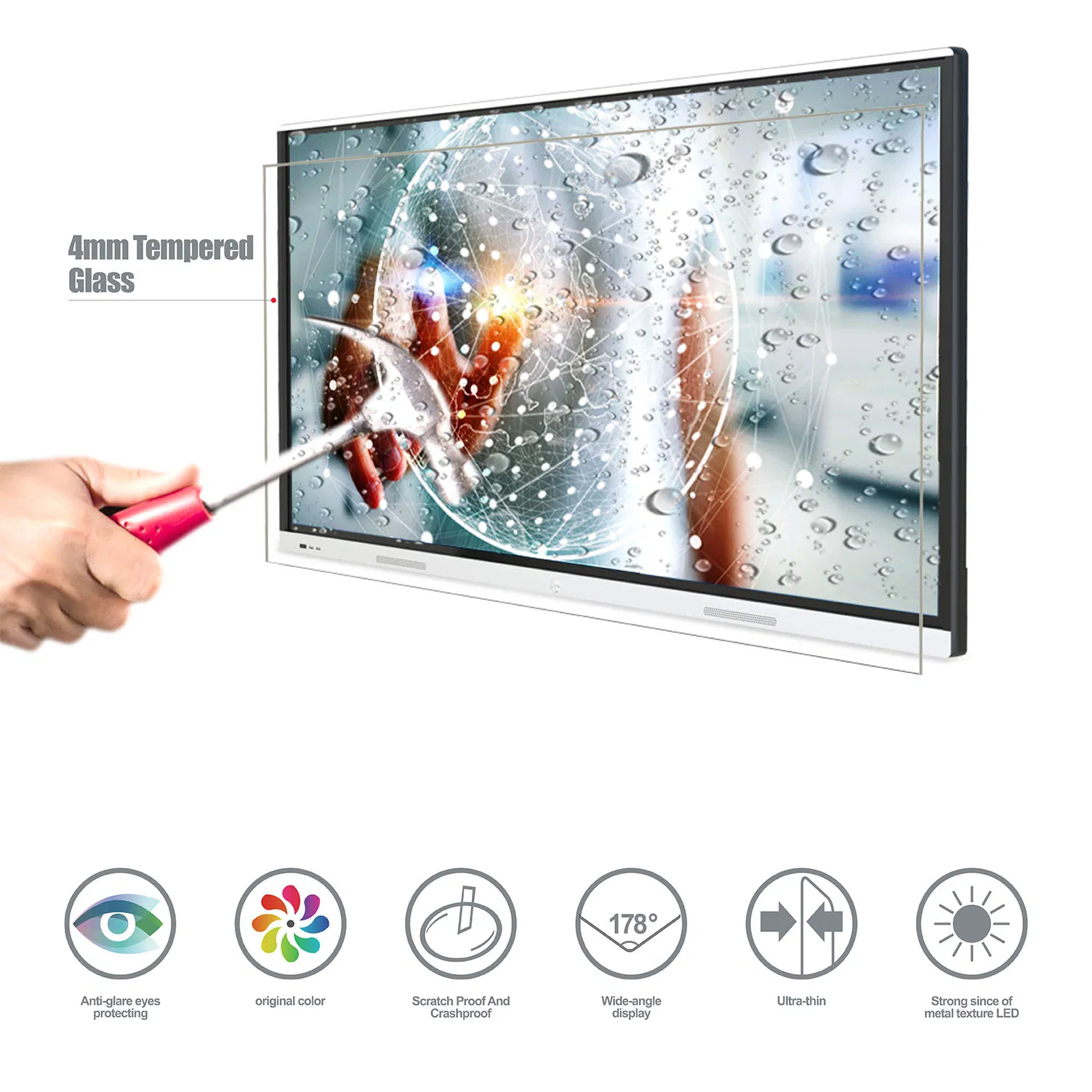

- 4mm explosion-proof Anti-glare tempered glass: 4mm Ultra-Thin rating 7 glass can protect screen effectively, and Turn the reflective surface of the original glass into a matte non-reflective surface
- Infrared touch screen with aluminum plate, small heat, fast heat dissipation, which can effectively extend the life of panel.

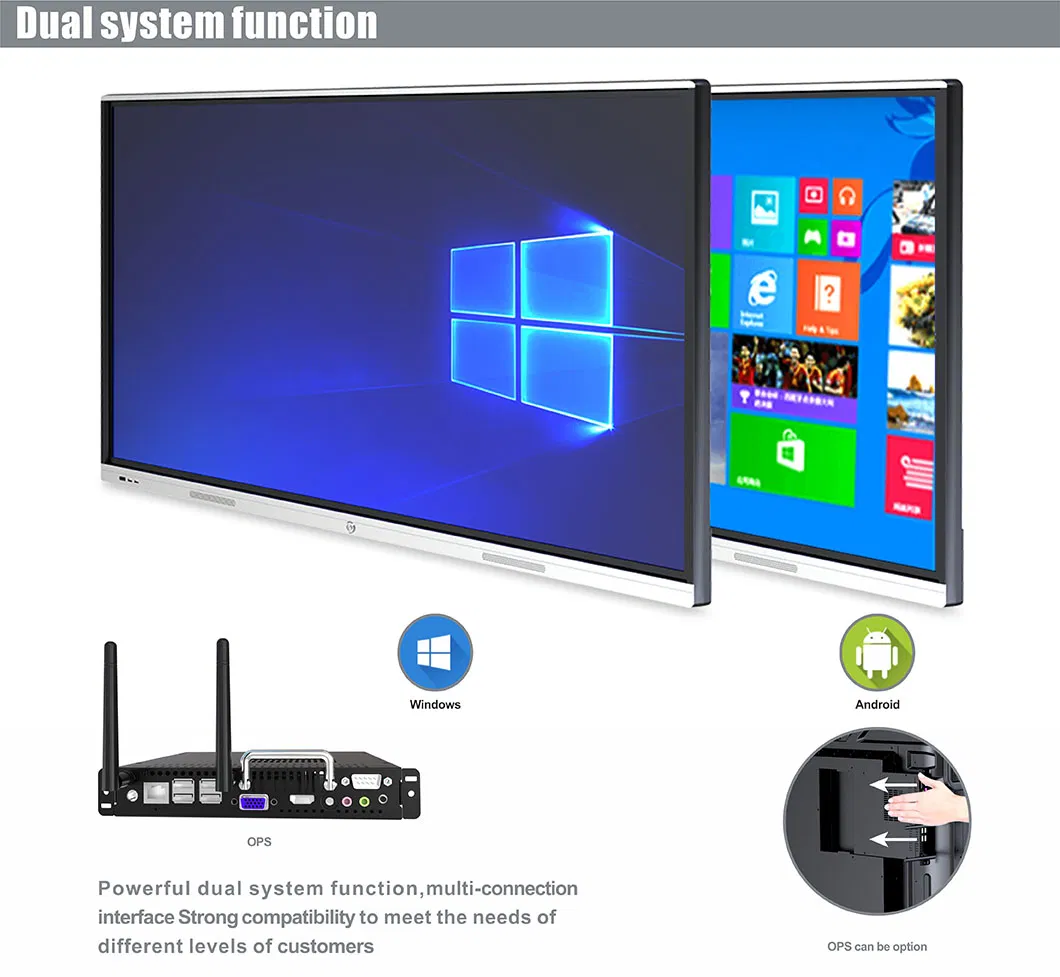

- Dual core processor : windows and android dual system built-in design. Both systems can achieve whiteboard writing and multimedia playing.
- Fast response speed: 0.8ms fluent writing and demonstration. More convenient courseware management. Accurate, fast touch, no delay.
- Intelligent operation: Freely write, annotate and screen shot. Automatically recognize input channel. Intelligent eye protection. Light sensor with automatic brightness control. Energy save & intelligent awake.
- Intelligent writing & Touch control: the writing function interface can realize the functions of writing, magnifying, shrinking, erasing, dragging, and the like.

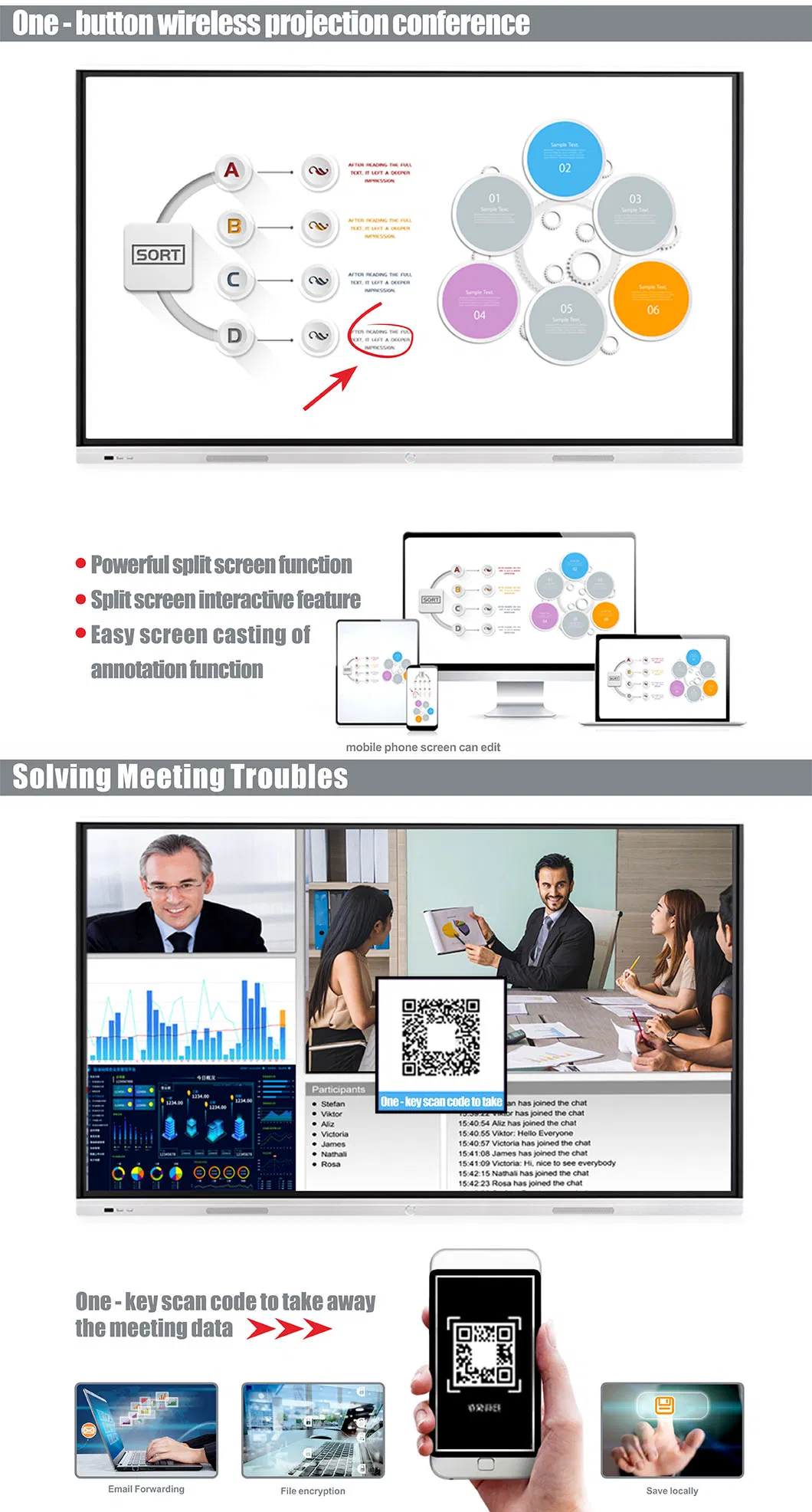

- Screen-mirroring with android phone, iphone, ipad, computer,etc.
| Model | DH-T6H86UGD | |
| Name | 86 inch smart flat panel | |
| Display parameters | display size | 1895.04(H)*1065.96(V) (mm) |
| image scale | 16:9 | |
| brightness | 350cd/m2 | |
| contrast ratio | 1200:1 | |
| color | 10bit true color (16.7M) | |
| backlighting type | DLED | |
| View angle | 178° | |
| Resolution | 3840 * 2160 | |
| whole machine parameters | vedio standard | PAL/NTSC/SECAM |
| audio system | DK/BG/I | |
| power of audio system | 2X10W | |
| whole machine power | ≤500W | |
| Standby power | ≤0.5W | |
| back light life | 30000H | |
| working voltage | 100-240V, 50/60Hz | |

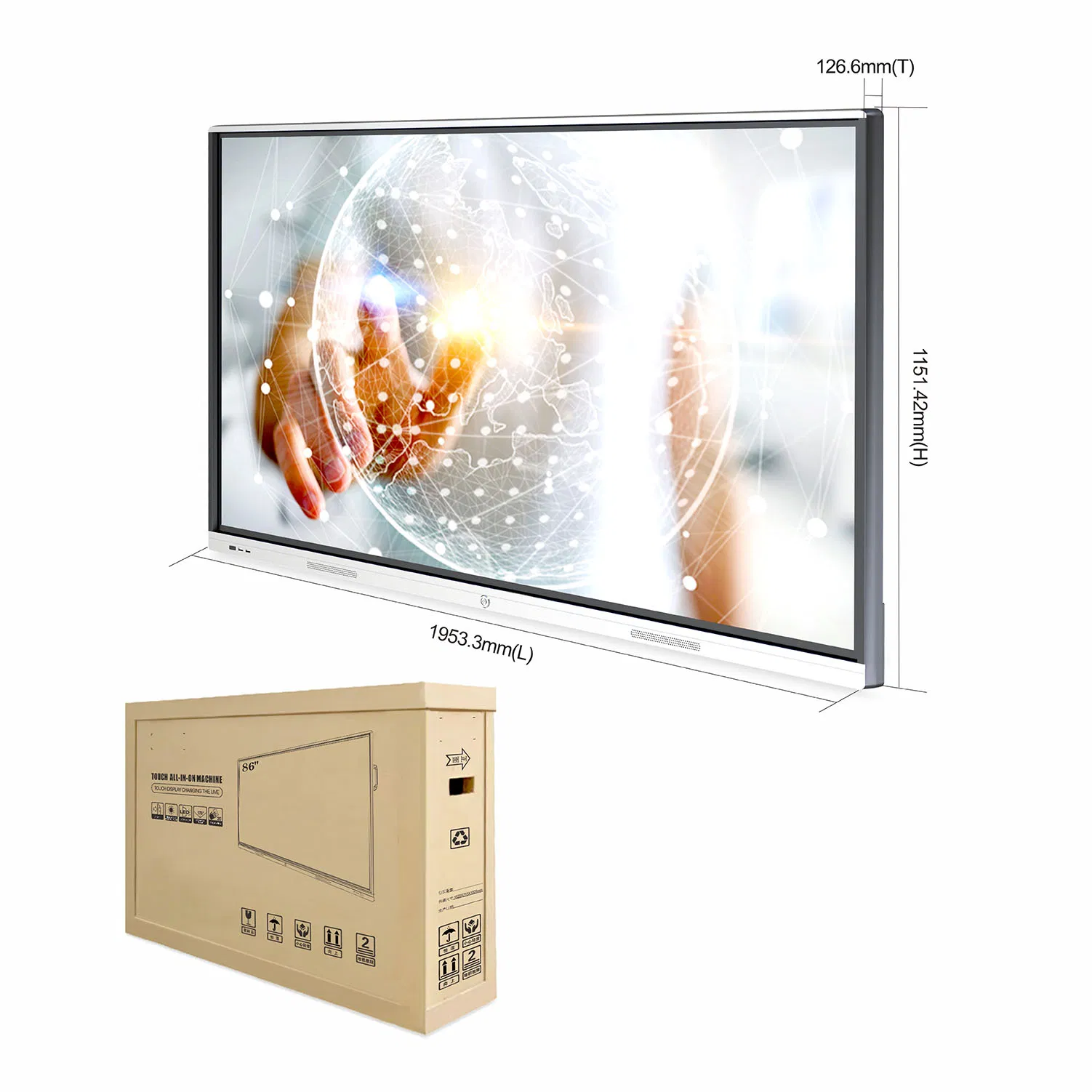

| whole machine size | 1953.3 (length) x 1151.42 (height) x 93.0 (thickness) mm | |
| 1953.3 (length) x 1151.42 (height) x 126.6 (thickness) mm (including rack) | ||
| packing size | 2101 (length) x 1338 (height) x 220 (thickness) mm | |
| N.W | 67KG | |
| G.W | 82KG | |
| working environment | Working temperature: 0ºC~50ºC; Working humidity: 10%RH ~ 80%RH; | |
| storage environment | Storage temperature: -20ºC~60ºC; Storage humidity: 10%RH ~ 90%RH; | |
| input port | Front port:USB2.0*1 USB3.0*1 | |
| Rear port:HDMI*2,USB*2,TOUCH-USB*1,RS232*1,RJ45*1,VGA*1,AUDIO*1 | ||
| output port | LineOut*1,COAX*1,(HDMIout optional) | |
| WIFI | 2.4+5G, | |
| Bluetooth | NO | |
| Android system parameters | CPU | MSD6A648(Cortex A53*4 /1.5G) |
| GPU | T720MP2 | |
| RAM | 2G | |
| FLASH | 32G | |
| android version | Andriod6.0 | |
| OSD language | Chinese English | |
| OPS parameters | CPU | I3/I5/I7 option |
| memory | 4G DDR3 | |
| Hard Disk | 128G SSD/256G SSD option | |
| operating system | window7 /window10 option | |
| interface | HDMI*1, USB2.0*4, USB3.0*2, VGA*1, Earphone*1, MIC*1, RS232*1, RJ-45 network interface*1, POWER button, RECOVERY button | |
| WIFI | Support 802.11 b/g/n | |
| Touch box parameters | Touch type | Infrared touch |
| Installation Method | Built-in front disassembly | |
| Touch screen sensing method | Fingers, writing pens, or other non-transparent objects ≥ Ø8mm | |
| Resolution | 32767*32767 | |
| Touch system communication port | USB 2.0 | |
| responding speed | ≤8 ms | |
| positioning accuracy | ≤±2mm | |
| Light resistance | 88K LUX | |
| multi-touch technology | 20-points touch | |
| Number of touches | More than 60 million times in the same location | |
| Touch support operating system | WIN7,WIN8,WIN10,LINUX,Android,MAC | |

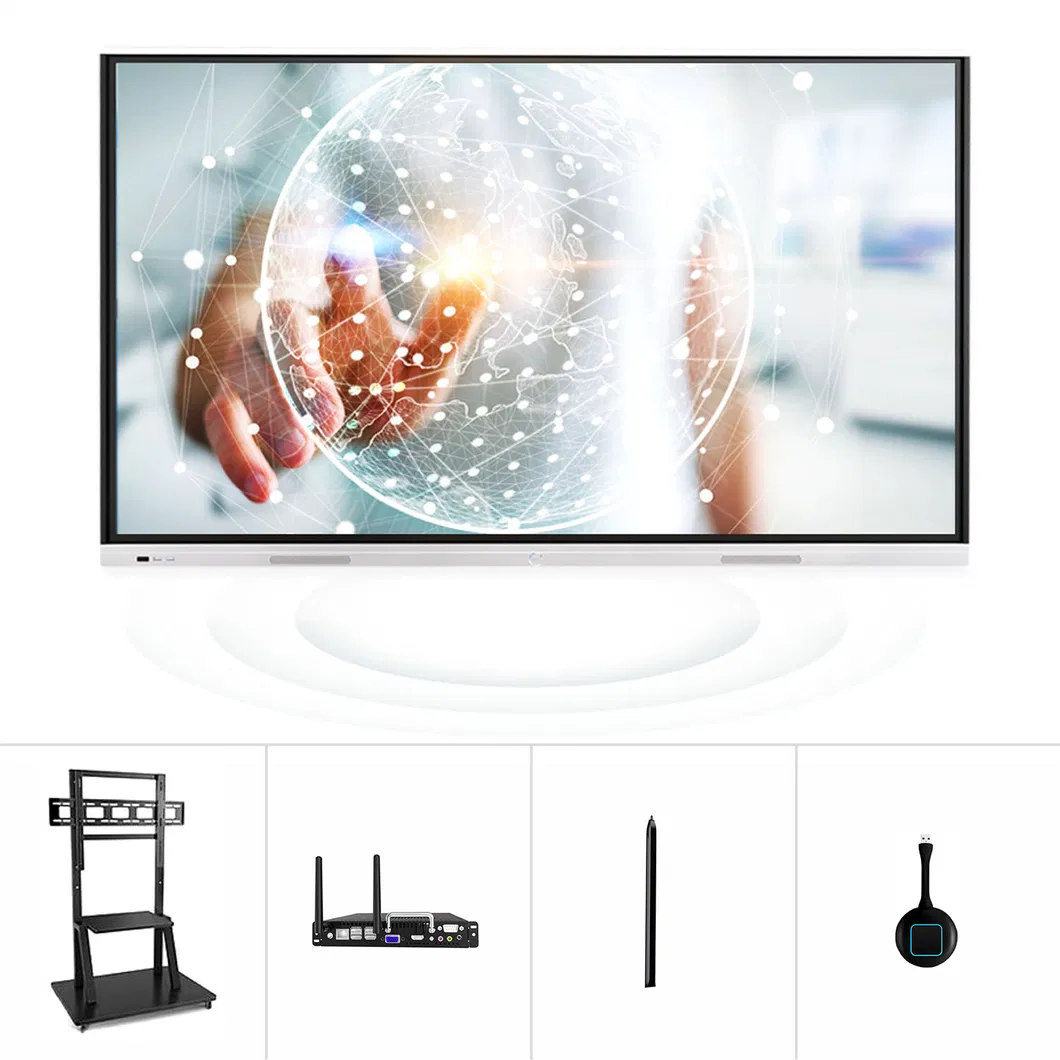

| Accessories | remote control | 1 pcs |
| power cable | Standard 1.8 meters 1 | |
| Touch pen | 1 pcs | |
| warranty card | 1 pcs | |
| Certificate of conformity | 1 pcs | |

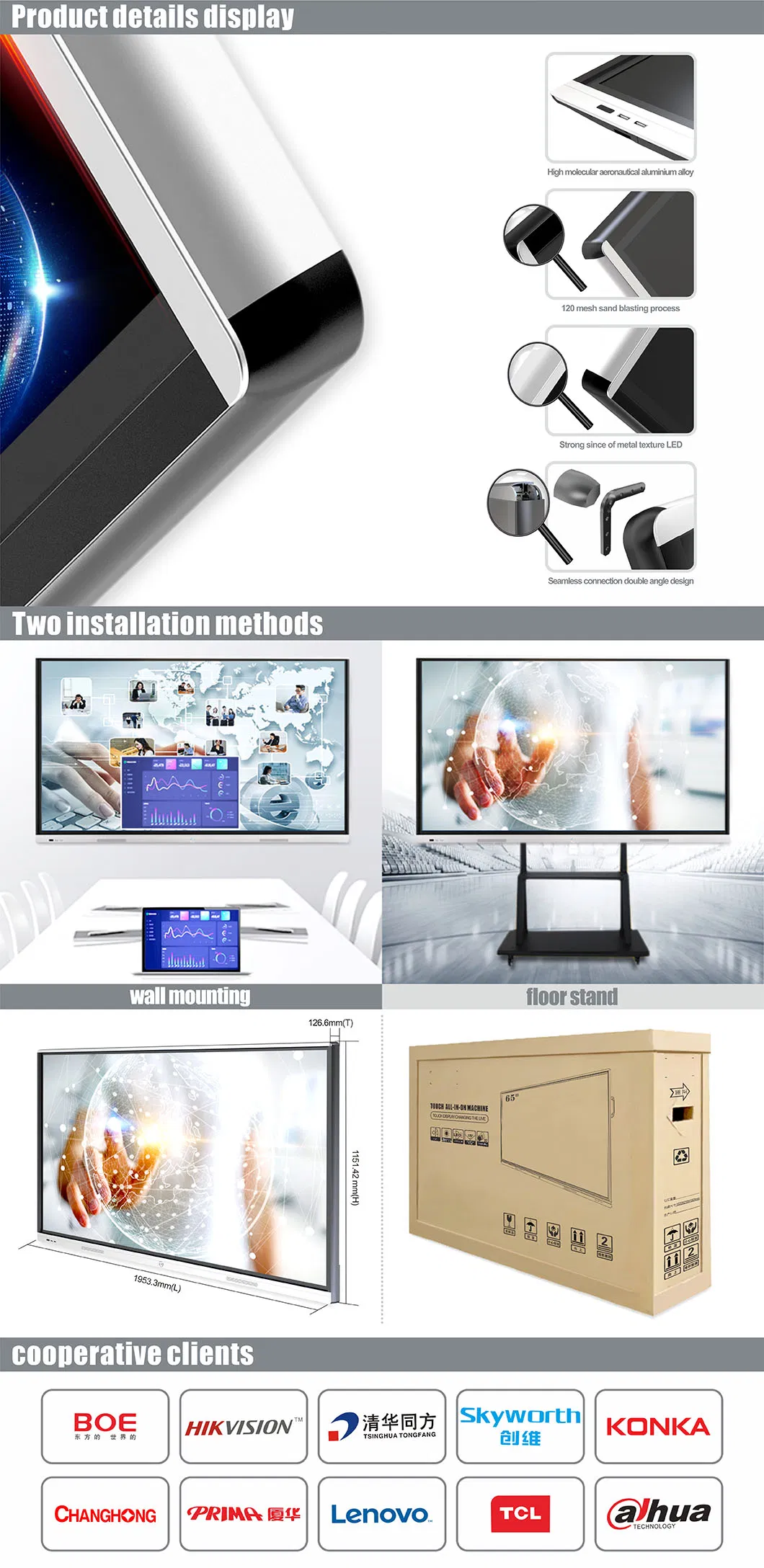

| wall mounted bracker | 1 set | |
1.Q: Can you introduce your company?

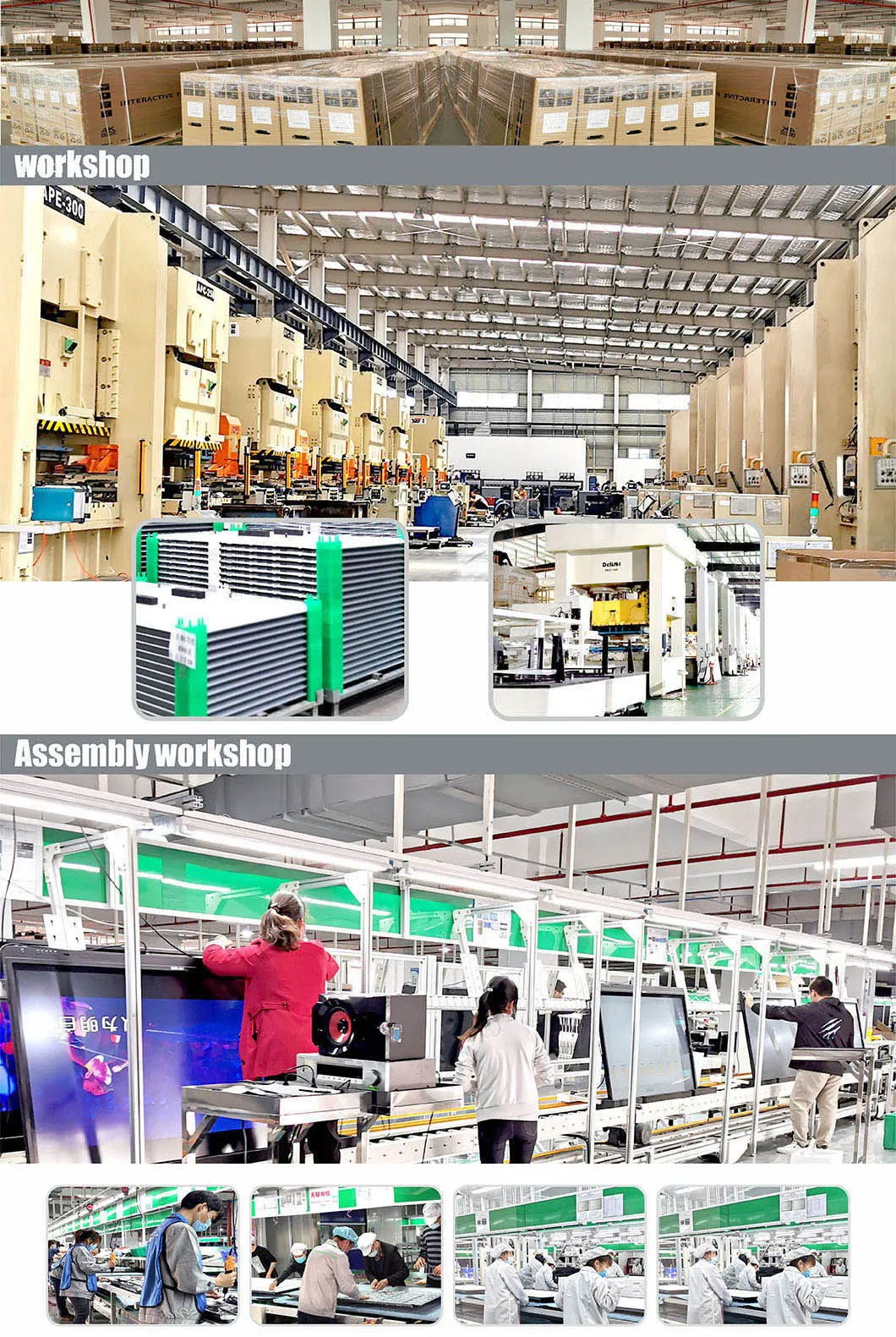

A: Dida is a high-tech enterprise , which specializes in Research &Development, Design, Production and Marketing of the CKD(completely knock down)&SKD(semi knock down) of LCD Display.
Our main business includes advertising digital signage module, backlight kit, education and conference all-in-one machine module, backlight and machine kit, customized machine program. Also,we are the explosion-proof TV in KTV And large size display kit, nano blackboard,ultra-large capacitance electromagnetic conference integration solution provider , infrared touch education system integration solution provider, flexible MIN-LED screen body, MIN-LED outdooradvertising integration solution provider.
2. Q: Do you provide all in one machine?
A: No, we mainly supply Nesting, and we have professional technicians to provide guidance services for the assembly of the whole machine all the time.
3. Q:what is your MOQ?
A:1 sets
4. Q:How about your delivery time?
A:It depends on your quantity. If the goods are in stock, usually delivered within 3-5 days. If it is customized, we need to confirm the delivery date according to the actual situation.
5. Q:What payment methods does your company accept?
A:we accept T/T, Paypal, and LC etc.
6. Q:Where is your company located?
A:Our headquarters is in Changan town, Dongguan, China. It is 1 hour from Shenzhen and 1.5 hours from Guangzhou. Traffic is very convenient.
7. Q:How many people at your R&D department?
A:12 persons.
8 . Q: How about transportation?
A: We can go by air or sea according to your requirements. All accessories will be placed in a sturdy cardboard box with plastic bags on the outside of the box.
